Satellite Metals & Tubes's core business is the production of 90° Long Radius Elbow for the water and gas distribution network, sewage treatment and fire protection. Furthermore, Satellite Metals & Tubes has built up strong brands supplying valves and controls for water treatment, dams & reservoirs, HVAC, chemical processing, marine and other industrial sectors. Satellite Metals & Tubes products are designed to the major international standards and are sold in more than countries worldwide. When dealing with the Satellite Metals & Tubes expect quality, reliability, functionality and long lifetime in service.
Satellite Metals & Tubes has not just veryfied the design but we also work in the optimization in order to obtain the best possible and most competitive solution in both the technical and commercial aspects.
In that year, the company began manufacturing stainless steel and established divisions for bright bars and for flanges and forging, and started exporting bright bars. Almost every year since then Satellite Metals & Tubes has added a type of 90° Long Radius Elbow to its range, including sections and profiles, fasteners, wire and wire rods.

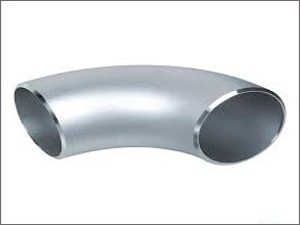

90° Long Radius Elbow Specifications
Size : 1/2"NB TO 48"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Material Type:
Stainless Steel, Alloy Steel and Carbon Steel
Nickel Alloys
Duplex
Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.
Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.
Nominal
Pipe Size (NPS) |
Outside
Diameter
at Bevel (O/D) |
Dimension A |
Dimension B |
Center
to Center O |
Back
to Face K |
| 1/2'' |
21.3 |
38.0 |
16 |
76 |
48 |
| 3/4'' |
26.7 |
38.0 |
19 |
76 |
51 |
| 1'' |
33.4 |
38.0 |
22 |
76 |
56 |
| 1.1/4'' |
42.2 |
48.0 |
25 |
95 |
70 |
| 1.1/2'' |
48.3 |
57.0 |
29 |
114 |
83 |
| 2'' |
60.3 |
76.0 |
35 |
152 |
106 |
| 2.1/2'' |
73.0 |
95.0 |
44 |
190 |
132 |
| 3'' |
88.9 |
114.0 |
51 |
229 |
159 |
| 3.1/2'' |
101.6 |
133.0 |
57 |
267 |
184 |
| 4'' |
114.3 |
152.0 |
64 |
305 |
210 |
| 5'' |
141.3 |
190.0 |
79 |
381 |
262 |
| 6'' |
168.3 |
229.0 |
95 |
457 |
313 |
| 8'' |
219.1 |
305.0 |
127 |
610 |
414 |
| 10'' |
273.0 |
381.0 |
159 |
762 |
518 |
| 12'' |
323.8 |
457.0 |
190 |
914 |
619 |
| 14'' |
355.6 |
533.0 |
222 |
1067 |
711 |
| 16'' |
406.4 |
610.0 |
254 |
1219 |
813 |
| 18'' |
457.0 |
686.0 |
286 |
1372 |
914 |
| 20'' |
508.0 |
762.0 |
318 |
1524 |
1016 |
| 22'' |
559.0 |
838.0 |
343 |
1676 |
1118 |
| 24'' |
610.0 |
914.0 |
381 |
1829 |
1219 |
| 26'' |
660.0 |
991.0 |
406 |
--- |
--- |
| 28'' |
711.0 |
1067.0 |
438 |
--- |
--- |
| 30'' |
762.0 |
1143.0 |
470 |
--- |
--- |
| 32'' |
813.0 |
1219.0 |
502 |
--- |
--- |
| 34'' |
864.0 |
1295.0 |
533 |
--- |
--- |
| 36'' |
914.0 |
1372.0 |
565 |
--- |
--- |
|
|
