Satellite Metals & Tubes's core business is the production of Thread fittings 90° Elbow for the water and gas distribution network, sewage treatment and fire protection. Furthermore, Satellite Metals & Tubes has built up strong brands supplying valves and controls for water treatment, dams & reservoirs, HVAC, chemical processing, marine and other industrial sectors. Satellite Metals & Tubes products are designed to the major international standards and are sold in more than countries worldwide. When dealing with the Satellite Metals & Tubes expect quality, reliability, functionality and long lifetime in service.
Satellite Metals & Tubes has not just veryfied the design but we also work in the optimization in order to obtain the best possible and most competitive solution in both the technical and commercial aspects.
In that year, the company began manufacturing stainless steel and established divisions for bright bars and for flanges and forging, and started exporting bright bars. Almost every year since then Satellite Metals & Tubes has added a type of Thread fittings 90° Elbow to its range, including sections and profiles, fasteners, wire and wire rods.

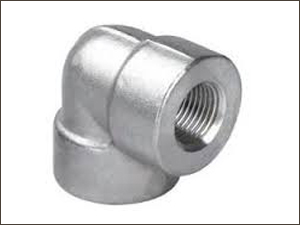

Thread fittings 90° Elbow Specifications
We offer a wide range of steel elbows that are available in different sizes.
Specifications:
• Grades: ASTM A182 F304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L, etc.
• Sizes: 1/8" NB TO 4" NB. (Socket Weld & Threaded)
• Class: 150#, 300#, 600#, 900#, 1500#, 2000#, 3000#, 6000#, 9000
| DN |
Nominal Pipe Size |
Center-to
-End
Elbows,
Tees,
Crosses, A |
Center-to-
End 45
deg Elbow, C |
Outside
Diameter
of Band, H |
Min.
Wall
Thickness, G |
Min
Length
of
Thread [Note (1)] |
| 2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
2000 |
3000 |
6000 |
B |
L2 |
| 6 |
1/8 |
21 |
21 |
25 |
17 |
17 |
19 |
22 |
22 |
25 |
3.18 |
3.18 |
6.35 |
6.4 |
6.7 |
| 8 |
1/4 |
21 |
25 |
28 |
17 |
19 |
22 |
22 |
25 |
33 |
3.18 |
3.30 |
6.60 |
8.1 |
10.2 |
| 10 |
3/8 |
25 |
28 |
33 |
19 |
22 |
25 |
25 |
33 |
38 |
3.18 |
3.51 |
6.98 |
9.1 |
10.4 |
| 15 |
1/2 |
28 |
33 |
38 |
22 |
25 |
28 |
33 |
38 |
46 |
3.18 |
4.09 |
8.15 |
10.9 |
13.6 |
| 20 |
3/4 |
33 |
38 |
44 |
25 |
28 |
33 |
38 |
46 |
56 |
3.18 |
4.32 |
8.53 |
12.7 |
13.9 |
| 25 |
1 |
38 |
44 |
51 |
28 |
33 |
35 |
46 |
56 |
62 |
3.68 |
4.98 |
9.93 |
14.7 |
17.3 |
| 32 |
1 1/4 |
44 |
51 |
60 |
33 |
35 |
43 |
56 |
62 |
75 |
3.89 |
5.28 |
10.59 |
17.0 |
18.0 |
| 40 |
1 1/2 |
51 |
60 |
64 |
35 |
43 |
44 |
62 |
75 |
84 |
4.01 |
5.56 |
11.07 |
17.8 |
18.4 |
| 50 |
2 |
60 |
64 |
83 |
43 |
44 |
52 |
75 |
84 |
102 |
4.27 |
7.14 |
12.09 |
19.0 |
19.2 |
| 65 |
2 1/2 |
76 |
83 |
95 |
52 |
52 |
64 |
92 |
102 |
121 |
5.61 |
7.65 |
15.29 |
23.6 |
28.9 |
| 80 |
3 |
86 |
95 |
106 |
64 |
64 |
79 |
109 |
121 |
146 |
5.99 |
8.84 |
16.64 |
25.9 |
30.5 |
| 100 |
4 |
106 |
114 |
114 |
79 |
79 |
79 |
146 |
152 |
152 |
6.55 |
11.18 |
18.67 |
27.7 |
33.0 |
| Nickel Alloy |
| ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 ) |
|
| Copper Alloy |
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. |
| Stainless Steel |
| ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H. |
|
| Duplex Steel |
| ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| Carbon Steel |
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2. |
|
| Alloy Steel |
| ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91. |
Thread fittings 90° Elbow Packaging
|
